| ITEM | DESCRIPTION |
|---|---|
| MATERIAL: | PVC + NYLON (V0) |
| THICKNESS: | 0.35 mm |
| COLOR: | GREY |
| SURFACE RESISTANCE: | 4.0 × 10¹¹Ω |
| FUNCTIONS: | PROTECTS AND BEAUTIFIES WIRING, EASY TO REMOVE, AND REUSABLE. |

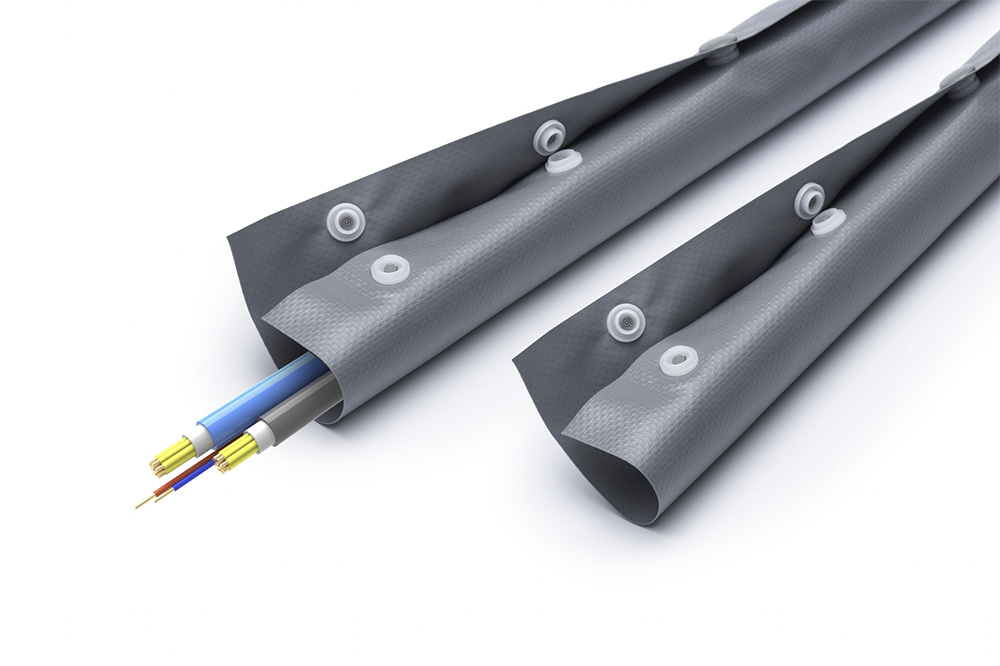

| USAGE: | DESIGNED FOR THE PROTECTION OF BRANCHED CABLE ASSEMBLIES. |
| ITEM | TRANSVERSE | LONGITUDINAL |
|---|---|---|
| TEAR STRENGTH: | 65.7 N | 56.3 N |
| TENSILE STRENGTH: | 727 N | 921 N |
| ELONGATION: | 22% | 20% |
| MODEL | WIDTH (mm) | DIAMETER (mm) | LENGTH | PACKAGING |
|---|---|---|---|---|
| YB-60 | 60 | Φ9 | 75 M | ROLL |
| YB-67 | 67 | Φ12 | ||
| YB-80 | 80 | Φ17 | ||
| YB-100 | 100 | Φ23 | ||
| YB-120 | 120 | Φ30 | ||
| YB-140 | 140 | Φ36 | ||
| YB-148 | 148 | Φ39 | ||
| YB-160 | 160 | Φ42 | ||
| YB-180 | 180 | Φ50 | ||
| YB-202 | 202 | Φ57 | ||
| YB-210 | 210 | Φ59 | ||
| YB-242 | 242 | Φ70 | ||
| YB-335 | 335 | Φ100 | ||
| YB-495 | 495 | Φ150 |
