| ITEM | DESCRIPTION |
|---|---|
| MATERIAL: | SPECIAL FIBER + VELCRO |
| THICKNESS: | 0.4 mm |
| COLOR: | GREY |
| OPERATING TEMPERATURE: | -20°C ~ +350°C |

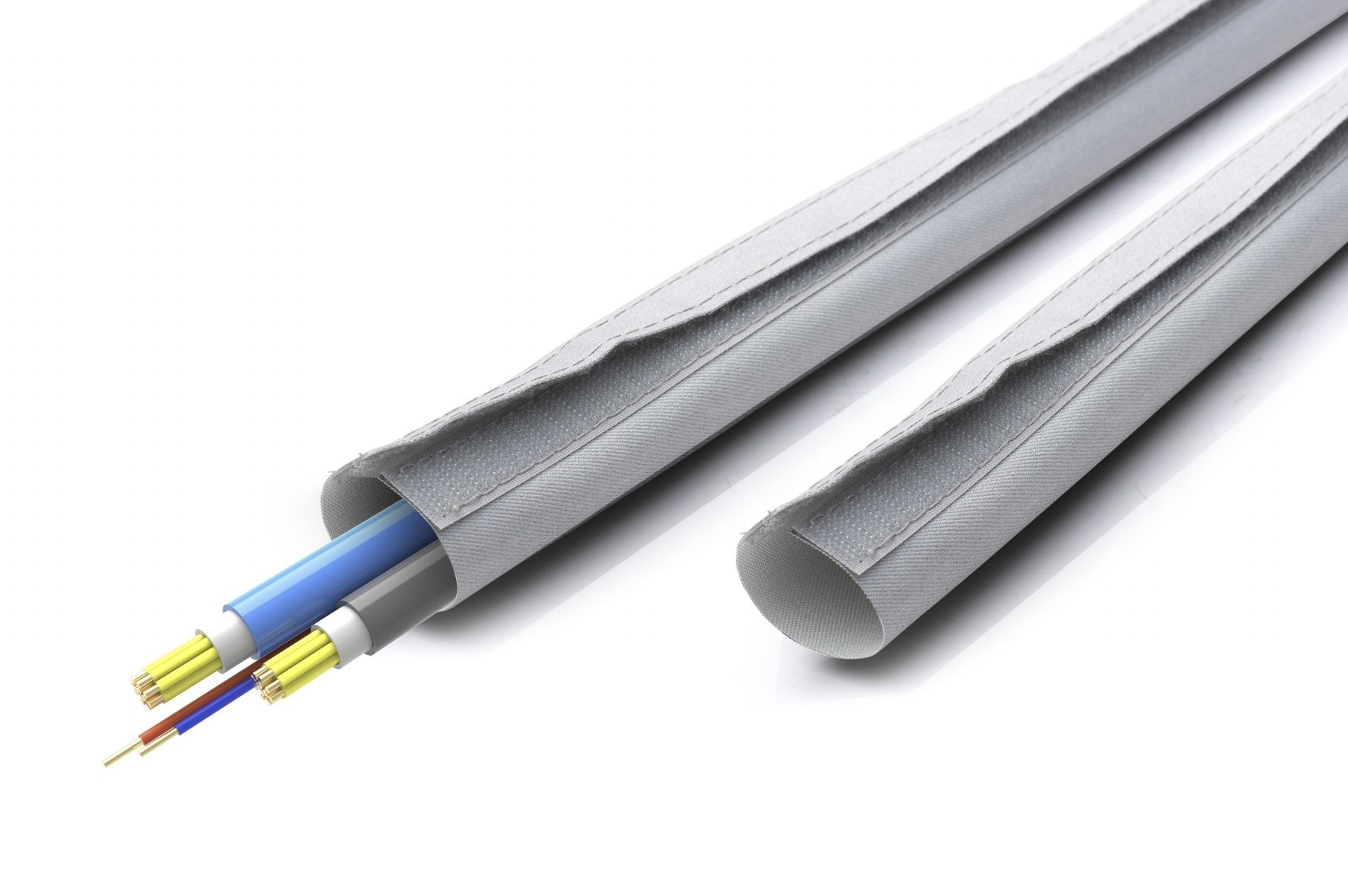

| USAGE: | HIGH WEAR PROTECTION FOR MOBILE WIRE HARNESSES. |
| FUNCTIONS: | REFLECTS HEAT, HIGH WEAR RESISTANCE, CUT RESISTANCE, HIGH TEMPERATURE RESISTANCE, AND ANTI-SPLASH PROPERTIES. |
| ABRASION RESISTANCE: | MARTINDALE ABRASION TESTER LOAD 12 KPA, WEAR TEST LAPS > 40,000, NO WEAR. |
| MODEL | DIAMETER (mm) | LENGTH | PACKAGING |
|---|---|---|---|
| YWMA-15 | Φ15 | 25 M | PAPER BOX |
| YWMA-20 | Φ20 | ||
| YWMA-25 | Φ25 | ||
| YWMA-30 | Φ30 | ||
| YWMA-40 | Φ40 | ||
| YWMA-50 | Φ50 | ||
| YWMA-70 | Φ70 | ||
| YWMA-100 | Φ100 |
